Class 52 Locomotive
Between 1961 and 1964, 74 of these 1350 hp locos were built.
Powered by two Maybach MD655 engines through a Voith L630rV hydraulic transmission, their 111 tonnes could be propelled to a maximum speed of 90 mph, with a maximum TE of 66770 lbf.

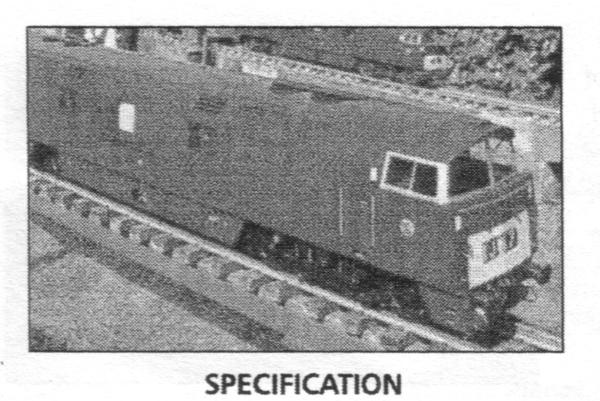

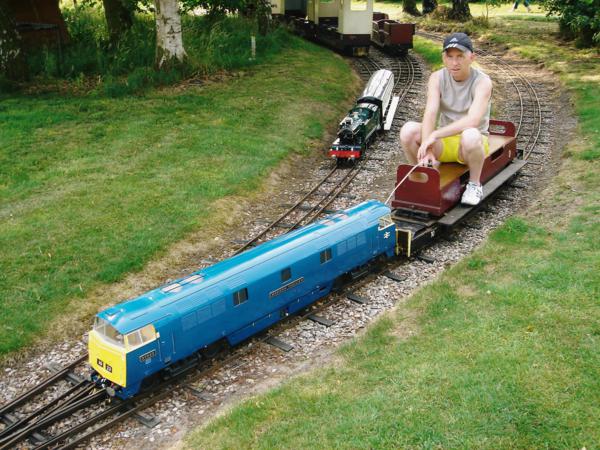

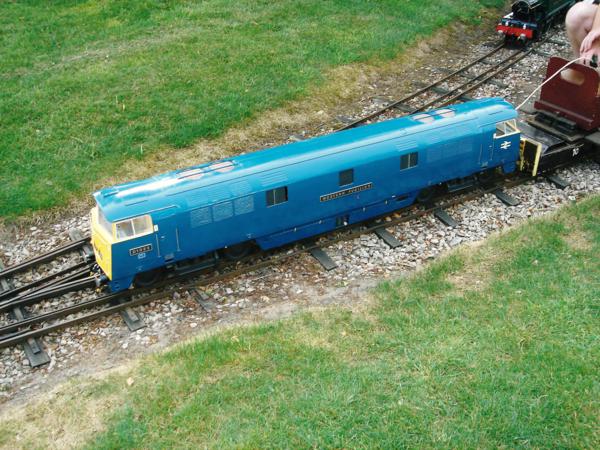

This 5” Gauge loco has a high definition, one piece fibre glass body mounted on cast aluminium bogies, driven in total by 4 DC motors and 120 amp Control Unit.
| Prices ( inc VAT) | |
|---|---|
5" |
|
| Complete set of drawings (5.)” | £45.00 |
| Body moulding, unpainted as moulded. | £580.00 |
| Individual castings and components. | |
| Machined kit for self assembly - unpainted components, body as moulded. Battery(ies)/ Controllers not included. | £3185.00 |
Ready to Run - complete body painted in one base colour but with no added detail. Windows and cab sided unglazed. Battery(ies)/ Controllers not included. |
£4310.00 |
| Ready to Run - as above but with custom livery and running numbers plus detailed transfers. | From £5060.00 |
| SPECIFICATION | ||||
|---|---|---|---|---|
| Gauge | Length | Width | Height | Weight* |
| 5” | 72” | 9 1/2” | 13 1/4” | 130lbs** |
| Body Moulding Dimensions | ||||
|---|---|---|---|---|
| Gauge | Length | Width | Height | Weight |
| 5” | 1740mm | 240mm | 230mm | 6.5kg |
| SPECIFICATION | ||||
|---|---|---|---|---|
| Gauge | Length | Width | Height | Weight* |
| 5” | 72” | 9 1/2” | 13 1/4” | 130lbs** |
