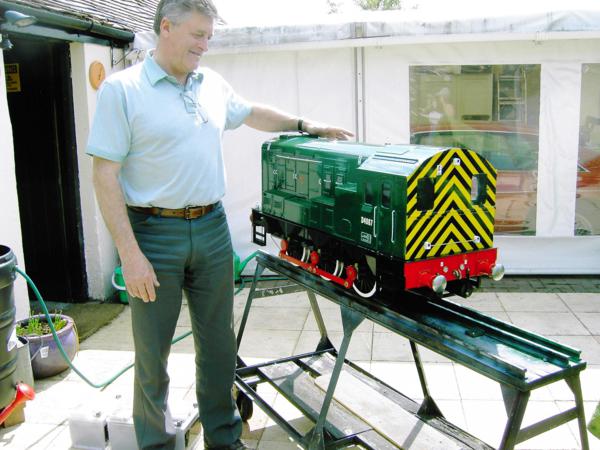

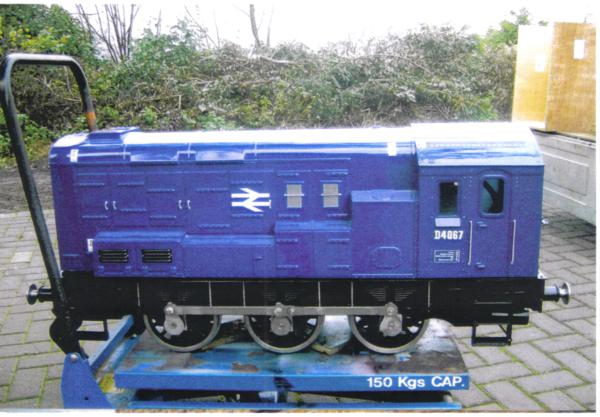

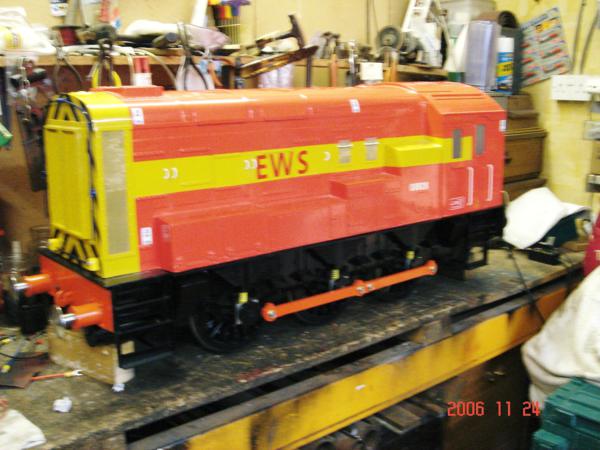

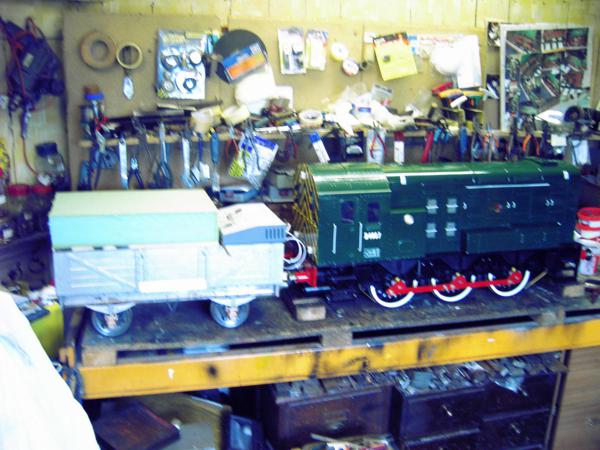

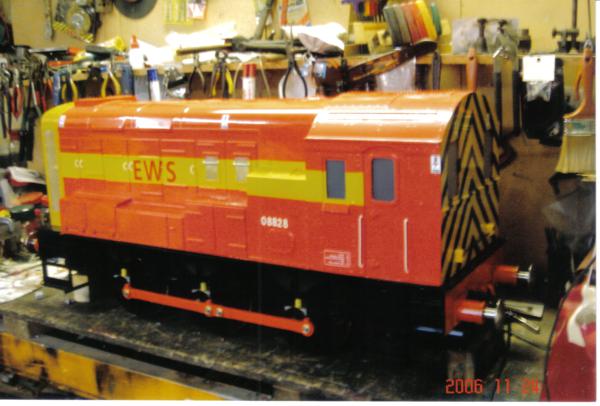

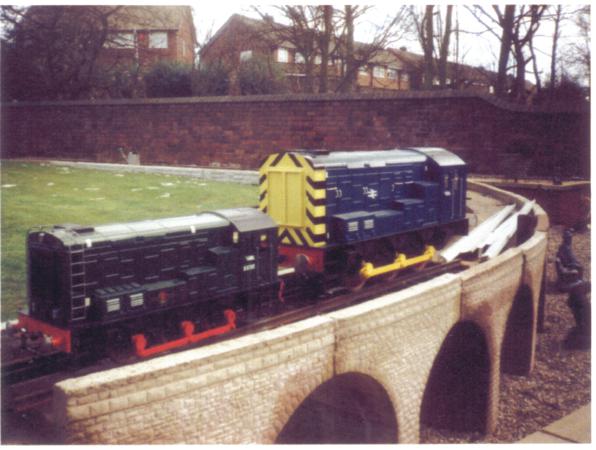

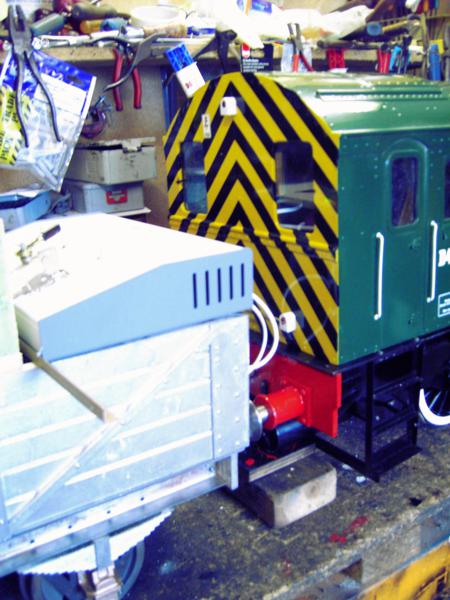

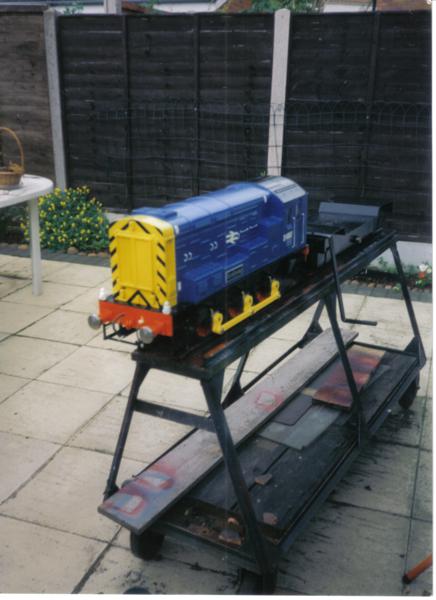

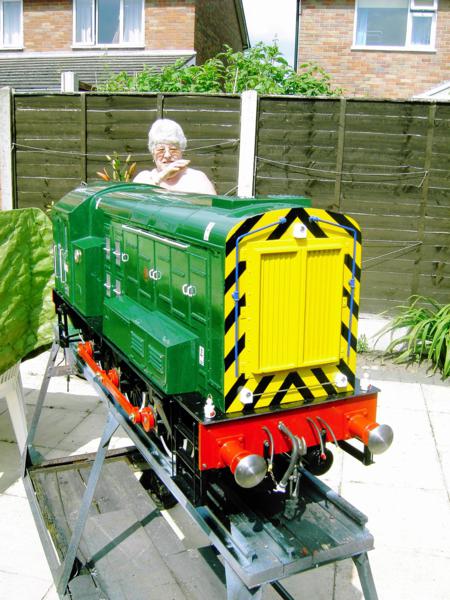

Class 08 Locomotive

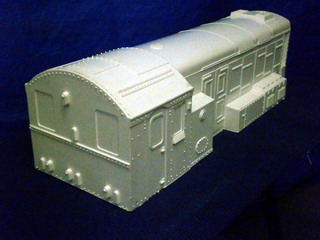

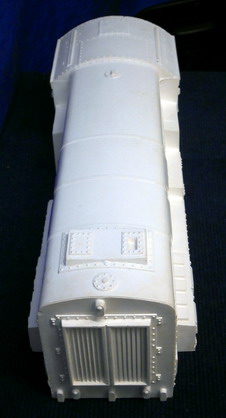

The body is a one piece highly detailed fibre glass moulding with many refinements.

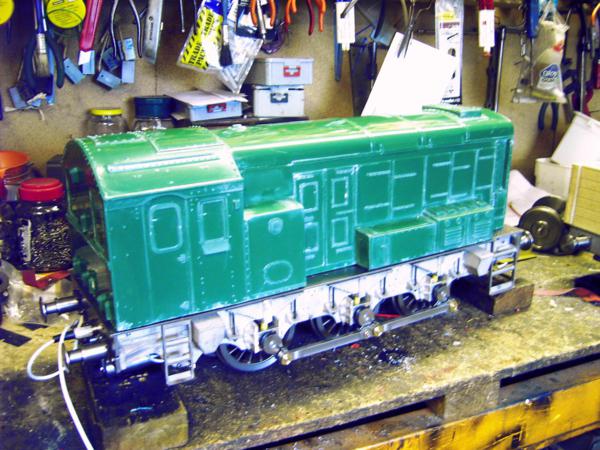

The side frames are equally detailed with leaf springs, horns and brackets all cast in a super quality aluminium casting.
Buffer plates are laser cut along with the coupling rods.
The whole basis of construction for the 5” gauge is simplicity, needing minimal experience for the beginner but providing such a highly detailed finish for the experienced model engineer.
| Prices (inc VAT) | ||
|---|---|---|
5" |
7 1/4" |
|
| Complete set of drawings (3 (5") / 7 ( 7 1/4") | £27.00 | £63.00 |
| Body moulding, unpainted as moulded | £375.00 | £550.00 |
| Individual castings and components - As per list | POA |
POA |
Machined chassic kit for self assembly - unpainted components. Body moulding/Battery(ies)/Controllers NOT included. |
£1841.00 | |
Ready to Run - chassic only fitted 3 motors. Body Moulding/Battery(ies)/ Controllers NOT included. |
£2450.00 | |
Ready to Run - complete body painted in one base colour but with no added detail. All windows solid. Battery(ies)/ Controllers NOT included. |
£2950.00 | |
| SPECIFICATION | ||||
|---|---|---|---|---|
| Gauge | Length | Width | Height | Weight* |
| 5” | 31” | 9” | 13” | 50lbs** |
| 7 1/4” | 45 1/2” | 14 1/2” | 19 1/2” | 150lbs** |
| Body Moulding Dimensions | ||||||
|---|---|---|---|---|---|---|
| Gauge | Length | Length (cab) | Length (nose) | Width (cab) | Width (nose excluding side boxes) | Height (max) |
| 5” | 710mm | 180mm | 530mm | 235mm | 160mm | 210mm |
| 7 1/4" | 1040mm | 250mm | 790mm | 345mm | 240mm | 305mm |
